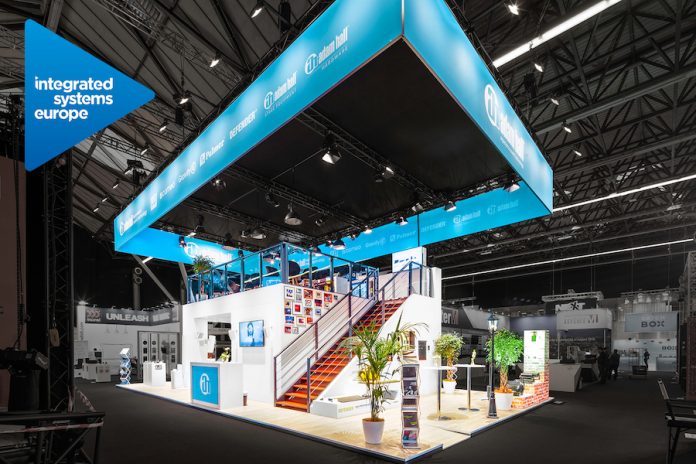

At Integrated Systems Europe 2020 (February 11 – 14, 2020) at the RAI Convention Center in Amsterdam, the Adam Hall Group will be presenting a range of audio and lighting solutions for professional use in AV fixed installations at its stand (#7-W200). Besides the expansion of the Cameo OPUS® series and the new F4 LED Fresnel spotlights for theatre and TV environments, the installation amplifiers of the IPA and IMA series as well as the first MAUI system for installation use from LD Systems are ready to impress the audience.

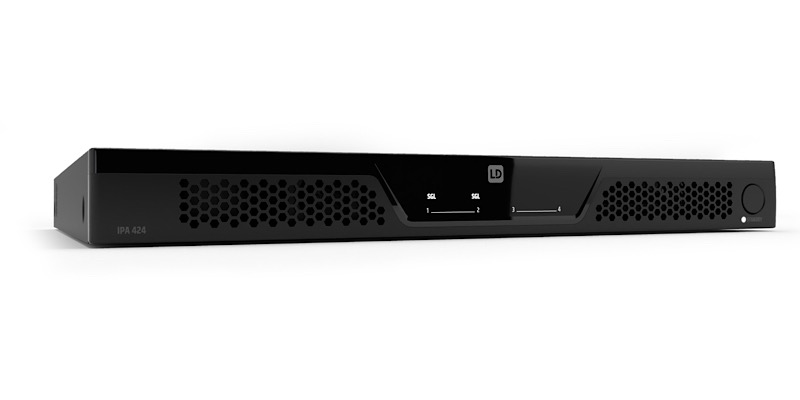

LD Systems IPA Series: Installation Power Amplifiers with DSP & Dante
With the IPA series, LD Systems expands its growing installation portfolio with DSP-based 4-channel installation power amplifiers. The IPA412T (120W) and IPA424T (240W) feature integrated transformers per channel and provide 100V/70V tap and low-Z output down to 4 ohms. Each model includes a slot for an expansion card, which can be used to control the IPA amplifiers, including all DSP parameters, via Ethernet and to integrate them into larger installation networks thanks to Dante AoIP connectivity. In the basic version, the IPA amplifiers work as a standard installation amplifier with 100/70V tap and independent low-Z output for excellent sound quality. The DSP section includes PEQ (with matched speaker library), dynamics, matrix mixer, priority source selector and delay. Via a REMOTE bus based on CAN architecture (Controller Area Network), the IPA series will be also capable of interacting with the future remote units and paging microphones from LD Systems.
LD Systems IMA Series: Installation Mixing Amplifiers with 70/100V Output Transformers
The IMA30 is the first member of LD Systems’ new IMA series of installation mixing amplifiers for use in fixed installations. With its versatile input and output options and multi-stage priority switching, the IMA30 enables flexible integration in commercial and industrial applications. On a compact 9.5″ chassis and 2RU, the IMA30 offers two mic/line inputs with +24VDC phantom selector, two stereo line inputs plus an integrated Bluetooth wireless signal input for connecting music sources, and a priority input for emergency paging. Outputs include a powered 30W @ 4 Ohms output plus a 70/100V tap as well as bass and treble tone controls. A Low-Z/High-Z selector separates the output signal completely from the output transformer, in order to get the best frequency response for low impedance applications. The IMA30 can also be used in conjunction with external amplifiers, subwoofers or music-on-hold systems via the separate aux line output. The music mix selector can be used to determine whether the entire mix or only the selected music source is channeled to the output.
The IMA30 offers four priority levels for emergency calls, mic/line inputs and connected music sources, as well as a selectable automatic standby mode for Energy Star certification. In order to enable not only integrators and installation service providers but also end users to easily operate the IMA series in daily practice, LD Systems put great emphasis on a user-friendly front and rear panel design.
LD Systems DQOR Outdoor Speaker Series
LD Systems presents its series of installation loudspeakers for outdoor and indoor use. The 2-way systems come in the new dynamic LD Systems design and are available as low-impedance version (8 Ohm) and high-impedance version (16 Ohm) with tap switch for variable power output in 70/100V applications. The sizes available are 3”, 5.25” and 8”. For flexible integration into a wide array of indoor and outdoor environments, the speakers feature an integrated wall mount plus a convenient slide-and-lock mechanism. Thanks to the integrated connection panel, the loudspeakers can also be used in optically demanding environments without visible cable paths. Furthermore the 27° tilt and 45° pan mechanism allows exact positioning for precise sound coverage. The new Outdoor Speaker Series is available in black and white.
LD Systems MAUI i1: MAUI Goes Installation
With the MAUI i1, the award-winning MAUI series of active column speaker systems from LD Systems takes the next evolutionary step. For use in fixed installations, the Surface-Mount Column Loudspeaker has been reworked and tailored to the special needs of planners, integrators and end users. The MAUI i1 is a column speaker with 9 x 3” full-range woofers and 2 x 1” neodymium high frequency drivers with integrated 2-way crossover and 120W RMS power @ 8 Ohms. The BEM-optimized high-frequency waveguide, which allows precise adjustment of the vertical dispersion, ensures homogeneous dispersion in acoustically challenging environments. For seamless integration into constant-voltage loudspeaker systems, the MAUI i1 has an input mode switch with 8 Ohms/70/100V options and a power tap selector for high impedance use with 60 – 30 – 15 – 7.5W taps. A dedicated U-bracket for flexible wall/ceiling mounting is included. The MAUI i1 is available in black and white.
LD Systems ZONE X1208
LD Systems presents the ZONE X1208 19-inch DSP matrix processor with a wide range of remote control options. Thanks to its hybrid architecture DSP with 40-bit floating point DSP engine the ZONE X1208 allows professional users to load DSP templates to adapt to different installation requirements. In combination with the built-in Event Scheduler, users can create calendar-specific workflow controls and perform automated preset changes. Furthermore it features a REMOTE bus for integration with future LD Systems control panels and Paging microphones. For superior signal flexibility the ZONE X1208 provides 12 balanced mic/line inputs with premium grade microphone preamps and 48 V phantom power selection per input, 8 balanced line outputs, 8 GPI, and 8 GPO logic ports.
At only 1 RU the ZONE X1208 features a clean and intuitive front panel design and is based on the latest generation Linux operating system, enabling remote control via the Xilica Designer universal control software using the integrated Ethernet interface. In addition, dedicated remote control apps for iOS and Android are available to customize the ZONE X1208 user interface to meet individual project needs. In addition to the ZONE X1208, the Matrix processor will also be available as ZONE X1208D with integrated Ethernet + Dante card for advanced AoIP applications with 64×64 Dante Audio over IP channels. The Ethernet + Dante card is also optionally available for subsequent upgrading of the ZONE X1208.
Cameo: A Drop of Light
Cameo presents the new DROP® series – battery powered outdoor uplights for musicians, DJs and rental companies looking for an extremely compact, mobile and highly flexible light source. The DROP series can be mounted in a variety of ways via a supplied mounting bracket or rubber feet plus an additional tilt foot for uplight application without an attached bracket. A special feature of the DROP B1 is its integrated magnet, which allows it to be attached to metal surfaces without any additional equipment.
The DROP series comprises three initial models: DROP B1 (1 x 15 W RGBWA+UV LED), DROP B4 (4 x 15 W RGBWA+UV LEDs) and the DROP P4 (4 x 15 W RGBWA+UV LEDs) with conventional mains power supply. The battery powered models feature a long-life super capacity LG Chem lithium-ion battery with an adjustable runtime of up to 12 hours. To change the light output the DROPs include two diffuser lenses for flexible beam angle spread options. All models feature a built-in 2.4 GHz W-DMX™ receiver for wireless DMX and IR control or via the four touch buttons display.
Cameo OPUS X Profile
With the OPUS X Profile Cameo shows its new flagship of the renowned OPUS series for the first time in Europe. Based on a 750 W white light LED, the High-Power Profile Moving Head generates an impressive luminous flux of 33,000 lm and 72,000 lux illuminance @ 5 m. In combination with CMY color mixing system – including a color wheel with six dichroic filters and linear CTO correction ranging from 6,500 K to 2,600 K – as well as an enormous zoom range of 6° to 48°, the OPUS X Profile enables even projections without disturbing hotspots even in the most demanding environments. The Profile Moving Head works completely flicker-free thanks to selectable PWM frequencies up to 25 kHz for particularly critical use in theatre and broadcast applications.
Further features of the OPUS X Profile include a rotating animation wheel, a rotating gobo wheel (6 indexable and rotatable interchangeable glass gobos + open), a static gobo wheel (7 interchangeable glass gobos + open), a rotatable and indexable circular 5-facet prism + linear 6-facet prism plus a variable frost filter for wash light effects. In addition to the battery-powered touchscreen display with push encoder and back buttons for mains-independent configuration, the OPUS X Profile can also be controlled via the integrated W-DMX™ transceiver, DMX, RDM, Art-Net or sACN.
Cameo EVOS W7
The EVOS W7 is a LED WashBeam Moving Head with a total of 19x 40 W RGBW and warm-white LEDs for rich RGB colors, beautiful pastels and breath-taking lighting effects. The powerful luminous flux of 10,500 lumen floods events, persons or objects with warm, bright light in clearly defined colors (CRI > Ra90) and delivers generous coverage up to 540° horizontally (pan) and 270° vertically (tilt). Thanks to its impressive zoom range of 4.5° to 55°, the EVOS W7 facilitates powerful beam and large-area wash effects, whereas the directional light beams can also be asymmetrically shaped using the included Beam Shaper. Providing individual control of all LEDs by means of Single Pixel Control, the Cameo EVOS W7 WashBeam Moving Head also produces breath-taking pixel effects. Live broadcast images of your event are guaranteed to be flicker-free because the WashBeam Moving Head’s refresh rate can be adjusted in six stages between 800 Hz and a maximum of 25 kHz. Software control via a network is highly flexible with W-DMX™ transceiver, DMX, RDM Art-Net3, sACN or KlingNet. Professional “Lumen beings” who value a particularly natural LED light for effects and lighting, this professional WashBeam is the right choice for you.
Cameo F4 series
Show the audience your true colors! The new Cameo F4 series comprises three LED Fresnel spotlights in Tungsten (3,200 K warm-white), Daylight (5,600 K cold-white) and RGBW Full-Color with tunable white function (1,600 K – 6,500 K). Thanks to its energy efficient LED with a total output of up to 34,000 lm (Daylight version) the F4 series replaces traditional 2,000 W Halogen Fresnel lights and dimmer racks in a perfect way. To ensure perfect illumination of people and objects in various kinds of theatre and TV environments, all F4 models feature a high Color Rendering Index (CRI > Ra90), an adjustable zoom range from 12° to 40° as well as 16-bit technology for high-resolution dimming including four selectable dimming curves and adjustable dimming response. Flicker-free operation is guaranteed by a selectable PWM up to 25K Hz. When it comes to particularly noise-sensitive applications in theatre, TV and film, the F4 LED Fresnel Spotlights are equipped with a highly efficient heat pipe cooling system and a whisper-quiet silent mode.
Cameo OPUS H5
Please welcome the swiss-army knife among moving heads: The OPUS H5 is an extremely versatile Beam, Spot and Washlight Hybrid with 18,000 lm light output and 400,000 lux illuminance @ 5 m. The surprisingly small and lightweight moving head features a Osram Sirius HRI 470 W discharge lamp for extremely bright and parallel beams including breathtaking mid-air effects with a large zoom range from 2° to 42°. Despite its flexible hybrid concept, the H5 is fully equipped like a traditional spot moving head: CMY color mixing system, color wheel with 13 dichroic filters, two gobo wheels (rotating & static), two frost filters for flexible wash effects as well as a total of 4 prisms on two wheels, combinable for highly creative mid-air effect possibilities. In addition to its connectivity options via DMX, RDM, Art-Net or sACN, the Cameo OPUS H5 can also be controlled wirelessly via the integrated W-DMX™ receiver.
Cameo H2 Series
Cameo presents the H2 series – a new range of Houselights designed for theatres, industrial applications and trade show venues looking for fixed LED room lighting with flexible DMX control options and high dimmer resolution. Available as full colour, warm white and adjustable daylight versions, the compact and discreet H2 fixtures provide a luminous flux of up to 17,000 lm (H2D) with their 180 W LED as well as silent and flicker-free operation based on selectable PWM frequencies up to 25 kHz.
Additional flexibility is provided by the interchangeable lenses, which can be used to adjust the beam angle from 20° to 45°. For quick and effective integration, the H2 Houselights feature Terminal Block connectors and 5-pin XLR connectors for the DMX signal. Wireless control via W-DMX™ is also possible. The supplied mounting bracket enables the H2 Houselights to be integrated into truss constructions and wall installations. Ceiling mounting is possible via an optional mounting kit.
